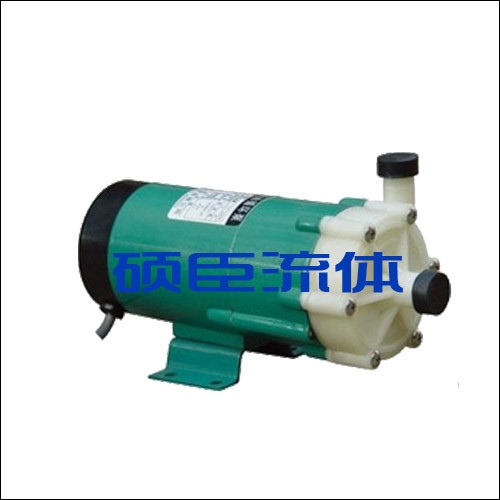

MPH/MP磁力循環泵-塑料磁力泵
碩臣專業MP磁力循環泵服務商,根據MP磁力循環泵原理及參數選擇合適MP磁力循環泵型號,提供優質MP磁力循環泵.
MP塑料磁力循環泵設計特別、造形美觀、尤其是軸承采用特種配方陶瓷材料，具有極強的耐磨性和抗腐性，走出了磁力泵“嚴禁空載”的禁區，保證了它的先進性和安全性。
MP塑料磁力循環泵參數
| 型號 | 軟管接口 | 螺紋接口 | 流量 | 揚程 | 標準輸出 | 介質密度 | 電機功率 | 轉速 | 電壓 | |||
| 進口 | 出口 | 進出口 | 活管 | (L/min) | (m) | 流量 | 揚程 | (g/cm3) | (W) | (r/min) | (V) | |
| (mm) | (mm) | (mm) | (mm) | (L/min) | (L/min) | |||||||
| MP-6R | 14 | 14 | - | - | 8 | 1 | 2.8 | 0.8 | ＜1.2 | 3 | 2900 | 220 |
| MP-6RZ | 14 | 14 | - | - | 5.5 | 2.1 | 3.2 | 0.8 | ＜1.1 | 3 | 2900 | 220 |
| MP-10R | 14 | 14 | - | - | 11 | 1.5 | 5 | 1 | ＜1.1 | 6 | 2900 | 220 |
| MP-15R | 16 | 16 | - | - | 16 | 2.7 | 8 | 1.5 | ＜1.3 | 10 | 2900 | 220 |
| MP-15RM | - | - | 3/4 | 13 | 16 | 2.4 | 8 | 1.5 | ＜1.3 | 10 | 2900 | 220 |
| MP-20R | 18 | 18 | - | - | 27 | 3.1 | 17 | 2 | ＜1.2 | 20 | 2900 | 220 |
| MP-20RM | - | - | 3/4 | 16 | 27 | 3.1 | 17 | 2 | ＜1.2 | 20 | 2900 | 220 |
| MP-20RX | 26 | 26 | - | - | 46 | 1.8 | 30 | 1 | ＜1.3 | 20 | 2900 | 220 |
| MP-20RXM | - | - | 1 | 20 | 46 | 1.8 | 30 | 1 | ＜1.3 | 20 | 2900 | 220 |
| MP-20RZ | 18 | 18 | - | - | 10 | 4.6 | 7 | 4 | ＜1.1 | 20 | 2900 | 220 |
| MP-20RZM | - | - | 3/4 | 13 | 10 | 4.6 | 7 | 4 | ＜1.1 | 20 | 2900 | 220 |
| MP-30R | 20 | 20 | - | - | 33 | 3.8 | 16 | 2.5 | ＜1.3 | 45 | 2900 | 220 |
| MP-30RM | - | - | 3/4 | 16 | 33 | 3.8 | 16 | 2.5 | ＜1.3 | 45 | 2900 | 220 |
| MP-30RX | 26 | 26 | - | - | 62 | 2.9 | 32 | 2 | ＜1.1 | 45 | 2900 | 220 |
| MP-30RXM | - | - | 1 | 20 | 62 | 2.9 | 32 | 2 | ＜1.1 | 45 | 2900 | 220 |
| MP-30RZ | 18 | 18 | - | - | 15 | 8 | 10 | 6 | ＜1.1 | 45 | 2900 | 220 |
| MP-30RZM | - | - | 3/4 | 13 | 15 | 8 | 10 | 6 | ＜1.1 | 45 | 2900 | 220 |
| MP-40R | 20 | 20 | - | - | 45 | 4.6 | 22 | 4 | ＜1.1 | 65 | 2900 | 220 |
| MP-40RM | - | - | 3/4 | 16 | 45 | 4.6 | 22 | 4 | ＜1.1 | 65 | 2900 | 220 |
| MP-40RX | 26 | 26 | - | - | 75 | 3.3 | 47 | 2 | ＜1.1 | 65 | 2900 | 220 |
| MP-40RXM | - | - | 1 | 20 | 75 | 3.3 | 47 | 2 | ＜1.1 | 65 | 2900 | 220 |
| MP-55R | 26 | 26 | - | - | 60 | 5.6 | 30 | 4 | ＜1.2 | 90 | 2900 | 220/380 |
| MP-55RM | - | - | 1 | 20 | 60 | 5.6 | 30 | 4 | ＜1.2 | 90 | 2900 | 220/380 |
| MP-55RZ | 26 | 26 | - | - | 25 | 10 | 15 | 8 | ＜1.1 | 90 | 2900 | 220/380 |
| MP-55RZM | - | - | 1 | 20 | 25 | 10 | 15 | 8 | ＜1.1 | 90 | 2900 | 220/380 |
| MP-70R | 26 | 26 | - | - | 86 | 6.7 | 50 | 4 | ＜1.1 | 150/180 | 2900 | 220/380 |
| MP-70RM | - | - | 1 | 20 | 86 | 6.7 | 50 | 4 | ＜1.1 | 150/180 | 2900 | 220/380 |
| MP-100R | 26 | 26 | - | - | 120 | 8.6 | 60 | 7 | ＜1.3 | 250/265 | 2900 | 220/380 |
| MP-100RM | - | - | 1 | 20 | 120 | 8.6 | 60 | 7 | ＜1.3 | 250/265 | 2900 | 220/380 |
| MP-100RX | - | - | 11/4 | 32 | 170 | 9 | 100 | 5 | ＜1.3 | 250 | 2900 | 220/380 |
| MP-120R | - | - | 11/2 | 36 | 220 | 10.5 | 140 | 6 | ＜1.3 | 370 | 2900 | 220/380 |
